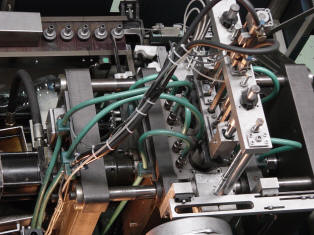

SSB 20 HP, 1999
Mag Plastic, 2'500 pc/h
Avantages
-
Année: 1999
-
Neck: Diam. 38
-
Libre tout de suite
| Technical specifications | |
| Number of cavities | 2 |
| Ouput, up to | 2'400 bph |
| Product dimension | |
| Preform length | 165 mm |
| Preform diameter | 18 - 35 mm |
| Neck ring diameter | 27 - 42 mm |
| Maximum neck finish diameter | 38 mm |
| Neck height | 9 - 27 mm |
| Bottle heigh | 340 mm |
| Bottle diameter | 115 mm |
| Bottle volume | 2 liter |
| Equipment dimensions, LxWxH | |
| Blowing module | 3,33 X 2,05 X 2,1 m |
| Control Cabinet | m |
| Weight | |
| Blowing module | kg |
| Control Cabinet | kg |
| Preforms infeed | kg |
| Total | kg |
| Installed power | |
| Installed power, maximum | 54 kW |
| Power supply | 230/400 V ±10% |
| Frequency | 50 / 60 Hz ±1% |
| Cooling water | |
| Cooling capacity | kcal/h |
| Water temperature | 8 - 12° C |
| Compressed air | |
| Validity of these consuptions: at a temperature of °C and at sea-level. | |
| 40 bar dry compressed air | |
| Total consuption for 2 liters bottle | Nm³/h |
| 8 bar compressed air (service air) | |
| Consuption | Nm³/h |
