DBX6,1997

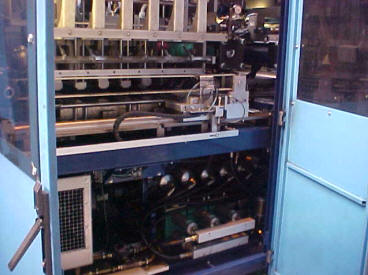

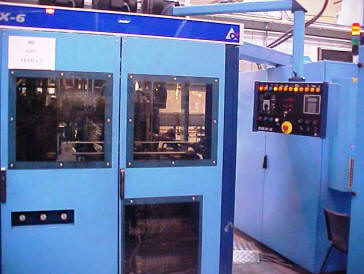

Tetra Pak DBX6, 6'000 pc/h
Avantages
-
Année: 1997
-
Neck: Diam. 28
-
Libre tout de suite
| Technical specifications | |
| Number of cavities | 6 |
| Ouput, up to | 6'000 bph |
| Product dimension | |
| Preform length | 165 mm |
| Preform diameter | 18 - 35 mm |
| Neck ring diameter | 27 - 42 mm |
| Maximum neck finish diameter | 38 mm |
| Neck height | 9 - 27 mm |
| Bottle heigh | 345 mm |
| Bottle diameter | 105 mm |
| Bottle volume | 2 liter |
| Equipment dimensions, LxWxH | |
| Blowing module | 3,30 x 2,32 x 2,81 m |
| Control Cabinet | 2,44 x 0,60 x2,15 m |
| Weight | |
| Blowing module | 6'300 kg |
| Control Cabinet | 1'200 kg |
| Preforms infeed | 1'200 kg |
| Total | 8'700 kg |
| Installed power | |
| Installed power, maximum | 74 kW |
| Power supply | 230/400 V ±10% |
| Frequency | 50 / 60 Hz ±1% |
| Cooling water | |
| Cooling capacity | 12'000 kcal/h |
| Water temperature | 8 - 12° C |
| Compressed air | |
| Validity of these consumptions: at a temperature of °C and at sea-level. | |
| 40 bar dry compressed air | |
| Total consumption for 2 liters bottle | 609 Nm³/h |
| 8 bar compressed air (service air) | |
| Consumption | 230 Nm³/h |
